Innovative Solutions: How Capiphon Eco Drain™ Is Transforming Stormwater Drainage

The Challenge in Civil Engineering

In civil engineering, we often face complex challenges when dealing with projects like retaining walls, slope construction, foundation digging, tunneling, and developing new lands. A recurring issue in these projects is managing soil moisture. Problems like water accumulation, seepage, and inadequate drainage aren’t just common; they’re major causes of construction headaches.

Traditional drainage methods – such as perforated pipes, PE mesh pipes, flex pipes, etc. often clog up easily as fine soil particles settle where they shouldn’t, especially around openings or filters. Some other external causes such as the unpredictable shake-up from earthquakes lead to these pipes deforming or cracking could make a bad situation worse by trapping even more water in the soil.

The Capillary Principle (Micro Siphon) in Action

Soil breathability and drainage aren’t just technical terms; they’re critical for the safety and stability of any construction project. It’s particularly challenging when dealing with soils that don’t let water through easily. Imagine rainwater or surface runoff that just can’t seep into the ground fast enough. This becomes a bigger issue as we continue to expand our communities and build larger structures, encroaching on natural green slopes and reducing the soil’s natural ability to hold water.

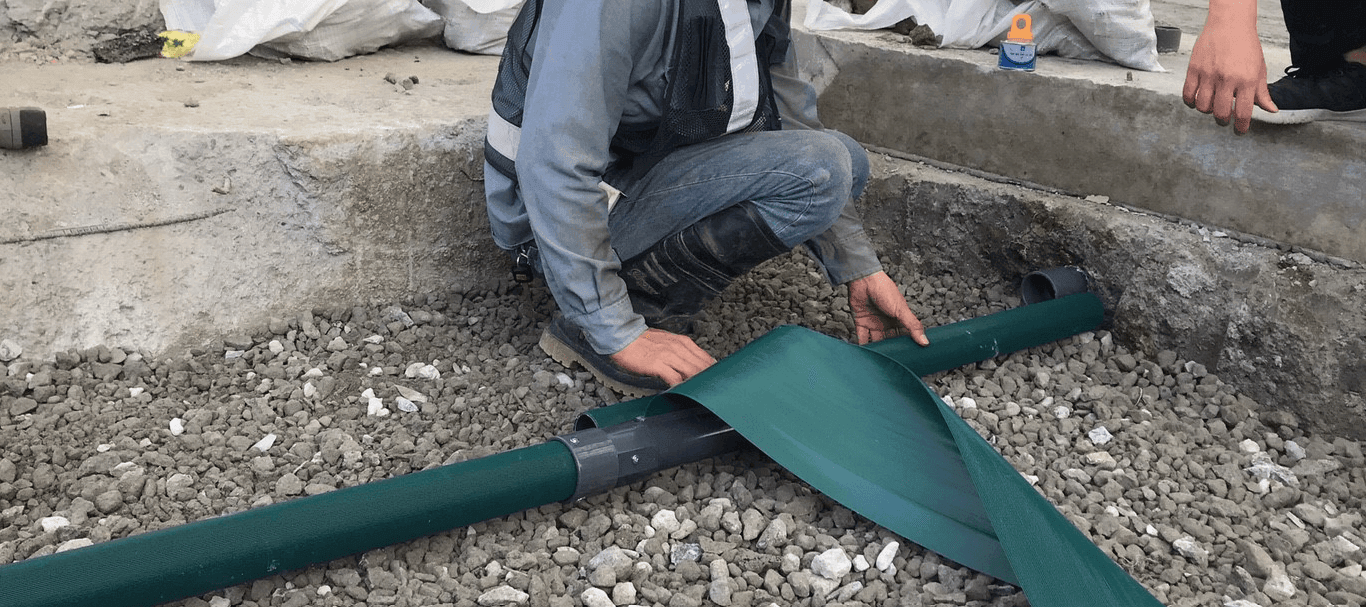

This is where the Capiphon Eco Drain™ systems ( Draintube and DrainBelt) step in. It is designed to mimic how soil and water interact. Think of it as harnessing the power of capillary action, siphoning, gravity, and surface tension – all working together to keep things flowing. Its unique design – resistant to clogging, cost-effective, and easy to install – is a breakthrough from traditional drainage materials. Like tree roots, the capillary pores in these pipes draw water quickly and efficiently into underground layers, preventing the issues that come with low soil permeability, like erosion or flooding. Capiphon Eco Drain™  systems are a perfect fit for various settings ranging from municipal and commercial projects like golf courses, parks, rooftop gardens, behind retaining walls, hillside developments, and even in preloading drainage for new or soft ground layers. Homeowners can also leverage the systems for yard drainage as well.

Technological Advancements

Traditional drainage pipes might seem straightforward – they usually have holes or grooves on the top half for water intake and rely on gravity to move the water out. However, when these pipes are buried, soil particles can get washed into them, leading to blockages and reduced efficiency. Capiphon Eco Drain™ turns this concept on its head. It uses a sophisticated design where soil and water interact uniquely, creating a drainage system that’s a cut above the usual PVC or PE mesh pipes. The capillary permeable pipe, made from thin PVC sheets wrapped around an ABS water pipe, is cleverly designed with grooves that are wider on the inside and narrower on the outside. When buried with the grooves facing down, these pipes activate in saturated soil conditions. The grooves are so finely tuned that they create a capillary effect, pulling water upwards against gravity.

Three Layers of Defense Against Clogging

Capiphon Eco Drain™ doesn't just drain water; they’re built to resist clogging at three levels.

The first line of defense against blockage in this system starts with gravity. Soil particles are trapped by gravity and settle outside the grooves, preventing them from entering the pipe system.

The second line of defense is provided by the narrow groove entrances, which are smaller than the pipe diameter. This design ensures that even if some fine particles manage to sneak in, they are either settled back into the soil or flushed out, preventing build-up inside the pipe.

The third defense mechanism comes from the design of the long, narrow grooves themselves. These grooves offer more contact area with water, reducing the likelihood of complete blockage. This design ensures that the pipe continues to function effectively, facilitating efficient drainage.

The system even cleverly uses surface tension principles to prevent water from leaking back, making sure that once the water’s in the pipe, it’s on a one-way trip out.

In summary, Capiphon Eco Drain™ system represents a significant leap forward in dealing with one of construction’s oldest problems. Through understanding and working with the natural principles of soil and water interaction, offers a smart, efficient solution to keep our projects safe, stable, and dry.
